Entwicklungskit DK-3.1 für die Textilindustrie

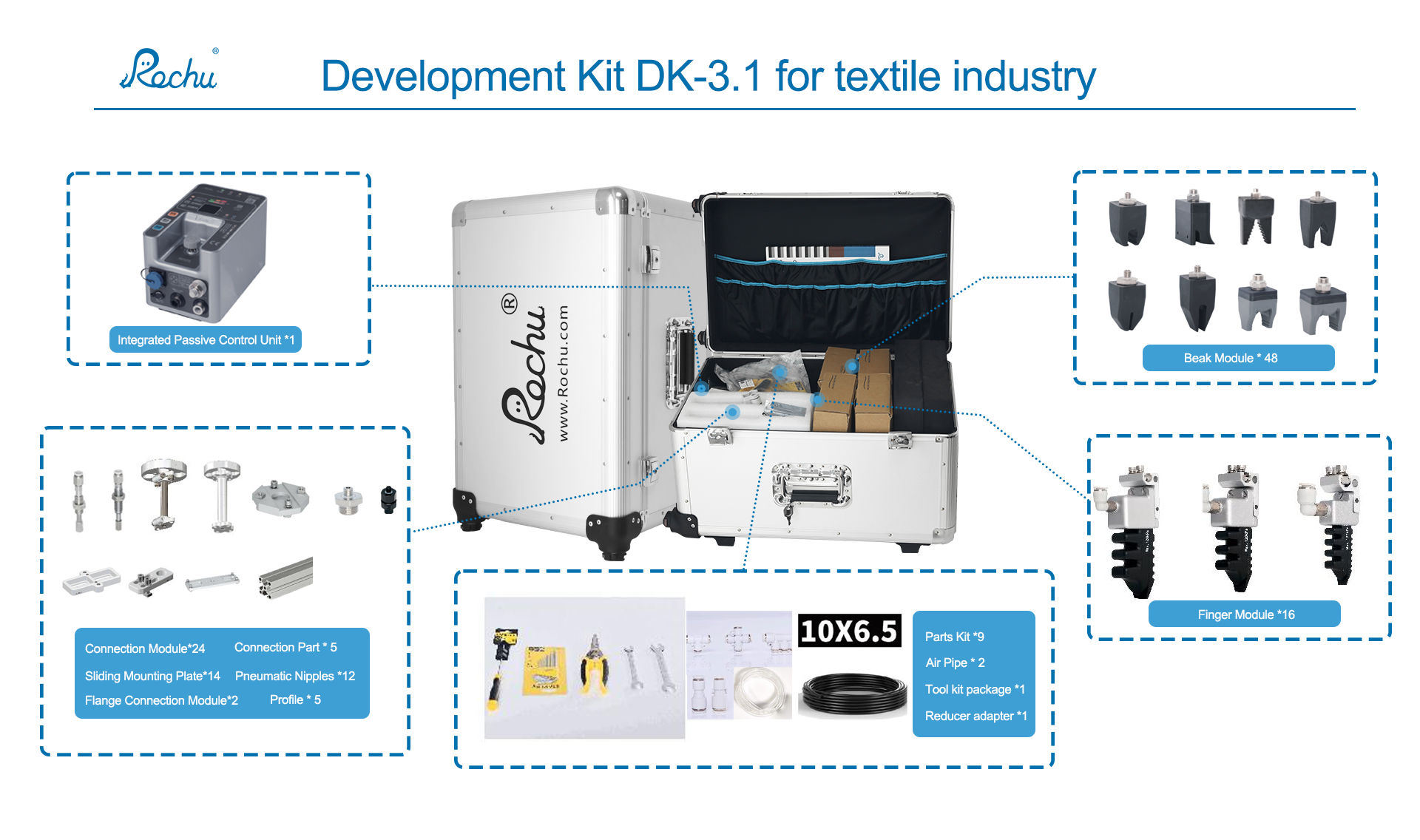

Das DK-3.1 Textile Gripping Development Kit ist eine Komplettlösung für Automatisierungsingenieure im Bereich Textilhandhabung. Es integriert verschiedene Softgreifer, Softfingermodule, Verbindungskomponenten, Steuerungen und Montagezubehör in einem Kit und ermöglicht Anwendern so die schnelle Evaluierung, den Prototypenbau und die Implementierung von Greiflösungen für diverse Textilmaterialien.
- Kategorie: Industrie-KIT
Beschreibung
* Integrated Passive Control Unit
• Features 3 adjustable output pressure ranges, fully supporting
applications from soft grippers to reinforced soft fingers.
• Manual rotary knob pressure adjustment.
•Integrated control panel with digital display and operation
buttons.
• Supports both manual (button control) and automatic (I/O signal control) modes, compatible with various robotic arms and PLC terminals.
•Equipped with mounting blocks and industrial DIN rail slots for multiple installation methods.
• IP54-rated electrical protection for water and dust resistance, suitable for harsh industrial environments. Includes intelligent alarm functions for safe and stable operation, minimizing the risk
* The soft boot gripper features a specially textured soft friction
surface that can “roll up” fabric materials. Combined with a rigid
positioning end, the placement accuracy can reach ±2 mm.
