How Soft Robotic Grippers Handle Oily Dough in Automated Pie Press Production

In food automation, oily dough handling has always been one of the more difficult applications. Traditional rigid grippers often struggle with deformation, sticking, slipping, or damaging the dough surface during transfer. Recently, a customer approached us with a typical but challenging request:A row-fed dough production line needed to automatically pick up filled dough pieces and place them precisely onto a pie pressing machine.The product specifications were:

• Diameter: 100 mm
• Height: 50 mm
• Weight: Approximately 100 g each
• Filled center structure
• Center distance: 100 mm

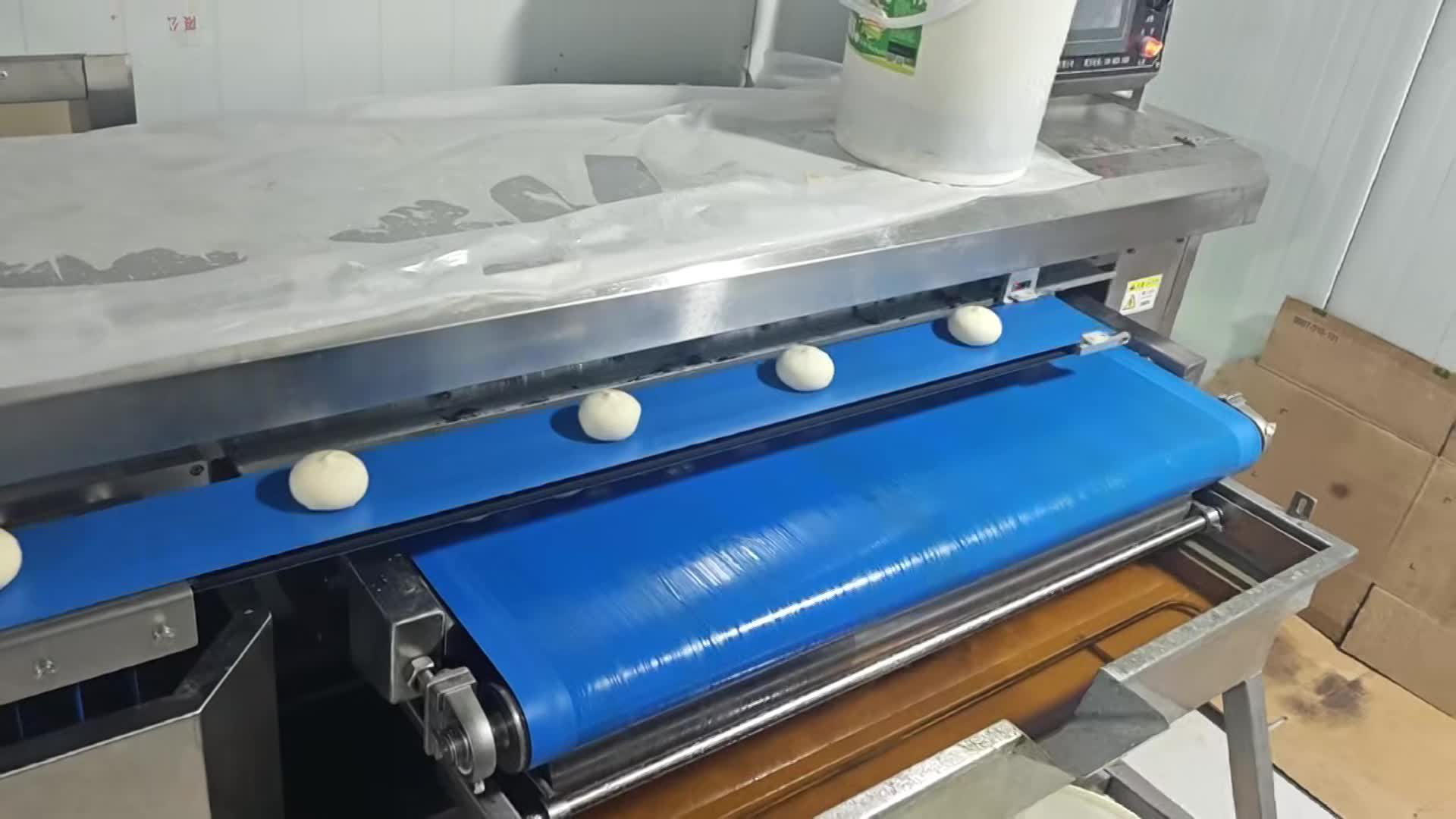

• Incoming in neat row arrangement
• Surface condition: oily and soft

For this kind of application, stable gripping force and gentle contact are both critical.

Why Traditional Grippers Struggle with Oily Dough

Food products containing oil and fillings are highly sensitive during handling.Several common issues appear in automated production lines:

• Vacuum cups may fail because of oily surfaces
• Mechanical clamps can deform the dough shape
• Uneven gripping pressure may squeeze the filling
• High-speed transfer increases slipping risks
• Repeated contact may leave marks on the dough surface

Especially when products arrive continuously in rows, positioning consistency and gripping rhythm become extremely important.

The Soft Gripper Solution

To solve this problem, we used a soft robotic gripper designed specifically for compliant food handling.Unlike rigid fixtures, the soft gripper adapts naturally to the dough surface during contact. The flexible gripping structure distributes pressure evenly, allowing stable pickup without damaging the outer layer or affecting the filling inside.The workflow looked like this:

1. Dough pieces arrive in aligned rows
2. The soft gripper approaches from above
3. Flexible fingers wrap around the dough surface gently
4. Products are lifted steadily
5. Dough is transferred and placed onto the pie pressing machine accurately

Because the dough spacing was fixed at 100 mm center distance, the gripping system could maintain a smooth repetitive motion suitable for continuous production.

Key Challenges in This Application

Oily Surface

The oily exterior reduces friction significantly. A rigid gripper relying on strong clamping force would easily squeeze or deform the dough.Soft gripping material increases contact area naturally, improving holding stability without excessive pressure.

Filled Structure

Since the dough contains filling, excessive compression could cause leakage or shape inconsistency.The compliant gripping structure avoids concentrated force points, helping preserve product integrity during transfer.

Stable Placement Accuracy

The pie pressing machine requires consistent placement position for downstream forming.Even small placement deviations can affect pressing quality and final appearance.The soft gripper maintained stable transfer trajectories while minimizing vibration during movement.

Why Soft Grippers Work Well in Food Automation

Soft robotic grippers are increasingly used in bakery and food production because they can handle delicate products that traditional automation struggles with.Typical applications include:

• Dough handling
• Bread transfer
• Pastry pickup
• Filled bun handling
• Fruit and vegetable gripping
• Fragile snack packaging

Compared with conventional end-of-arm tooling, soft grippers provide:

• Gentle contact
• Better adaptability
• Reduced product damage
• Improved hygiene-friendly design
• Higher compatibility with irregular shapes

Final Result

After testing and adjustment, the system successfully achieved:

• Stable gripping of oily dough
• Smooth transfer to the pie pressing machine
• Reduced deformation during handling
• Consistent placement accuracy
• Continuous automated row-based production

For food manufacturers looking to automate soft and delicate product handling, soft robotic grippers offer a highly practical solution where vacuum or rigid systems often fail.As food automation continues evolving, flexible gripping technology is becoming an important part of modern production lines.
